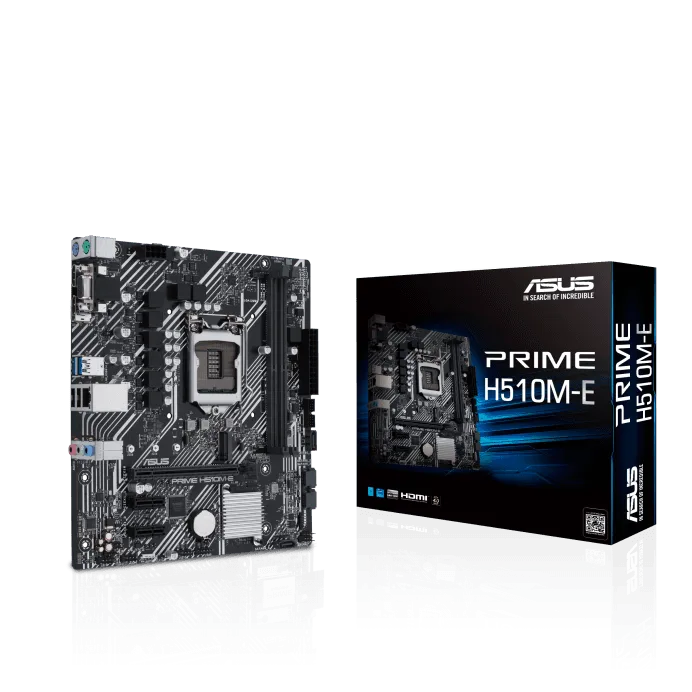

ASUS MOTHERBOARD 510 (PRIME H510M E) DDR4 (FOR INTEL 10TH | 11TH GEN)

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Cooler by Design

Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS

• Multiple Temperature Sources : Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• 4-Pin PWM/DC Fan : Each onboard header supports PWM or DC mode.

M.2 (up to 32 Gbps)

M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

ASUS H510 motherboards are designed specifically for 11th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
